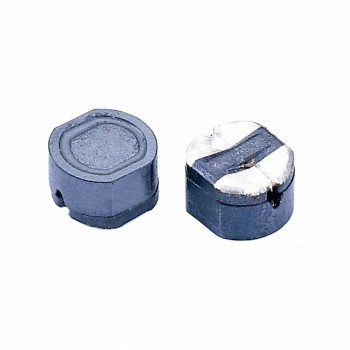

SCR125B-181

Technical Details

• Series:SCR125B
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:180 µH
• Tolerance:±20%
• Current Rating (Amps):1.95 A
• Current - Saturation (Isat):770mA
• Shielding:Shielded
• DC Resistance (DCR):480mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.516" L x 0.476" W (13.10mm x 12.10mm)
• Height - Seated (Max):0.232" (5.90mm)
