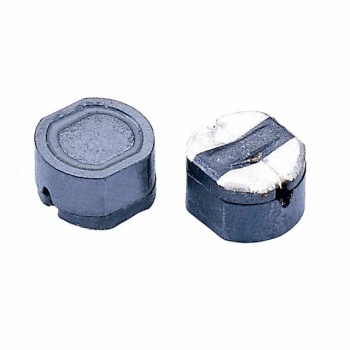

SCR74B-120

Technical Details

• Series:SCR74B
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:-
• Material - Core:-
• Inductance:12 µH
• Tolerance:±20%
• Current Rating (Amps):3 A
• Current - Saturation (Isat):1.57A
• Shielding:Shielded
• DC Resistance (DCR):70mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:2.52 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.327" L x 0.295" W (8.30mm x 7.50mm)
• Height - Seated (Max):0.197" (5.00mm)
