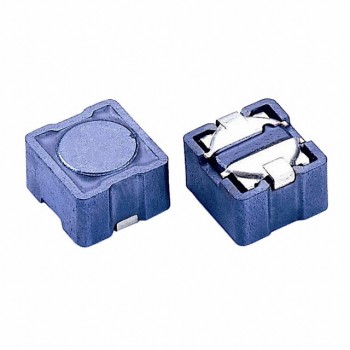

SCRH105-180

Technical Details

• Series:SCRH105
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:18 µH
• Tolerance:±20%
• Current Rating (Amps):2.22 A
• Current - Saturation (Isat):3.4A
• Shielding:Shielded
• DC Resistance (DCR):100mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.398" L x 0.362" W (10.10mm x 9.20mm)
• Height - Seated (Max):0.236" (6.00mm)
