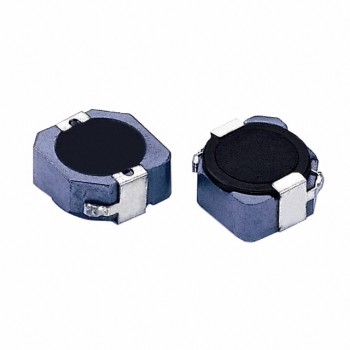

SCRH105R-390

Technical Details

• Series:SCRH105R
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:-
• Material - Core:-
• Inductance:39 µH
• Tolerance:±30%
• Current Rating (Amps):2.43 A
• Current - Saturation (Isat):1.7A
• Shielding:Shielded
• DC Resistance (DCR):106mOhm Max

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.413" L x 0.406" W (10.50mm x 10.30mm)
• Height - Seated (Max):0.201" (5.10mm)
