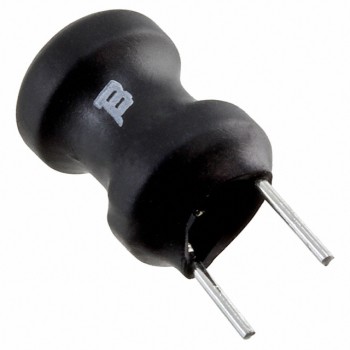

PT12117SL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 390UH 200MA 4 OHM TH
- CategoryFixed Inductors
- Datasheet PT12117SL Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PT121
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:390 µH
- Tolerance:±10%
- Current Rating (Amps):200 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):4Ohm Max
- Q @ Freq:80 @ 796kHz
- Frequency - Self Resonant:2.1MHz
- Ratings:-
- Operating Temperature:-20°C ~ 80°C
- Inductance Frequency - Test:796 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.400" Dia (10.15mm)
- Height - Seated (Max):0.500" (12.70mm)
