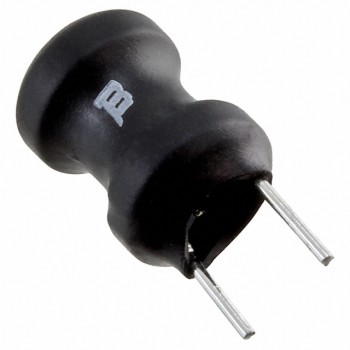

PT12131SL

Technical Details

• Series:PT121
• Package:Bulk
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:-
• Inductance:5.6 mH
• Tolerance:±10%
• Current Rating (Amps):50 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):18Ohm Max

• Q @ Freq:90 @ 252kHz
• Frequency - Self Resonant:600kHz
• Ratings:-
• Operating Temperature:-20°C ~ 80°C
• Inductance Frequency - Test:252 kHz
• Features:-
• Mounting Type:Through Hole
• Package / Case:Radial, Vertical Cylinder
• Supplier Device Package:-
• Size / Dimension:0.400" Dia (10.15mm)
• Height - Seated (Max):0.500" (12.70mm)
