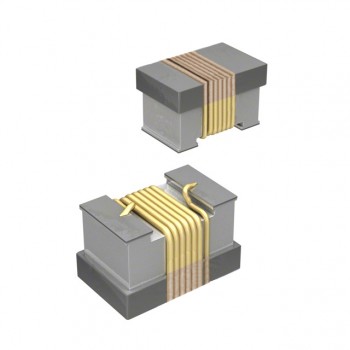

CW100505-5N6J3
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.6NH 760MA 83MOHM SMD
- CategoryFixed Inductors
- Datasheet CW100505-5N6J3 Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CW100505
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:5.6 nH
- Tolerance:±5%
- Current Rating (Amps):760 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):83mOhm
- Q @ Freq:23 @ 250MHz
- Frequency - Self Resonant:5.8GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.022" W (1.00mm x 0.55mm)
- Height - Seated (Max):0.024" (0.60mm)
