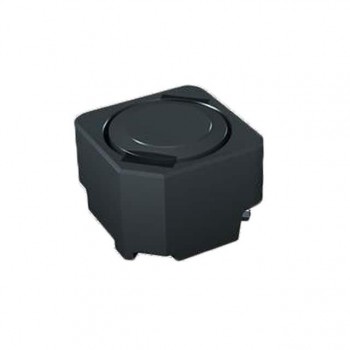

MBH6045C-101MB=P3
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 830MA 408 MOHM
- CategoryFixed Inductors
- Datasheet MBH6045C-101MB=P3 Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$0.50531
- 1,000$0.4784
- 3,000$0.46345
- 5,000$0.4485
- 10,000$0.43355
Quote It
Technical Details
- Series:MBH6045C
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:100 µH
- Tolerance:±20%
- Current Rating (Amps):830 mA
- Current - Saturation (Isat):530mA
- Shielding:Shielded
- DC Resistance (DCR):408mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.244" L x 0.244" W (6.20mm x 6.20mm)
- Height - Seated (Max):0.189" (4.80mm)
