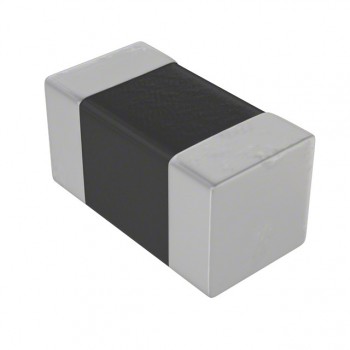

HKQ0603W2N5S-T

Technical Details

• Series:HK, Q Type
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:Multilayer
• Material - Core:Ceramic
• Inductance:2.5 nH
• Tolerance:±0.3nH
• Current Rating (Amps):560 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):160mOhm Max

• Q @ Freq:15 @ 500MHz
• Frequency - Self Resonant:8.5GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:500 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0201 (0603 Metric)
• Supplier Device Package:0201 (0603 Metric)
• Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
• Height - Seated (Max):0.013" (0.33mm)
