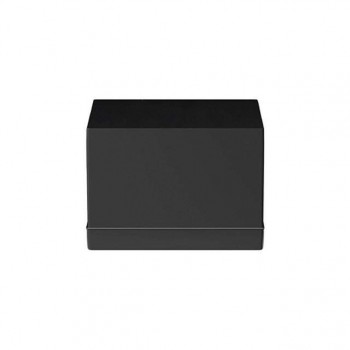

B82432A1182K000

Technical Details

• Series:SIMID
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:1.8 µH
• Tolerance:±10%
• Current Rating (Amps):490 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):410mOhm Max

• Q @ Freq:25 @ 7.96MHz
• Frequency - Self Resonant:210MHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:1 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:2-SMD, J-Lead
• Supplier Device Package:1812 (4532 Metric)
• Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
• Height - Seated (Max):0.126" (3.20mm)
