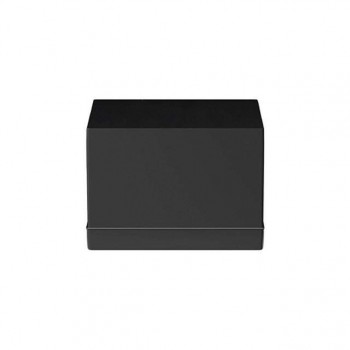

B82432A1564J000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560UH 70MA 23 OHM SMD
- CategoryFixed Inductors
- Datasheet B82432A1564J000 Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:560 µH
- Tolerance:±5%
- Current Rating (Amps):70 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):23Ohm Max
- Q @ Freq:30 @ 796kHz
- Frequency - Self Resonant:2.8MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:1812 (4532 Metric)
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.126" (3.20mm)
Related Products
FIXED IND 470NH 3.7A 25 MOHM SMD
Call for price

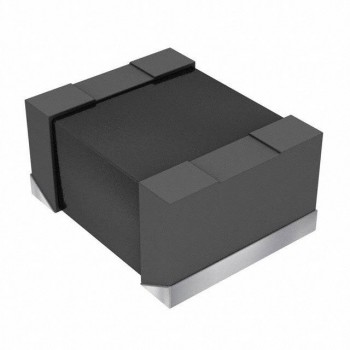

FIXED IND 680NH 3.5A 30 MOHM SMD
