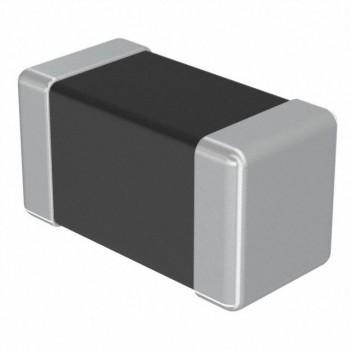

HKQ0603W24NH-T
TAIYO YUDEN
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 24NH 160MA 1.6 OHM SMD
- CategoryFixed Inductors
- Datasheet HKQ0603W24NH-T Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$0.01632
- 15,000$0.01632
- 30,000$0.01581
- 75,000$0.0153
- 105,000$0.01479
Quote It
Technical Details
- Series:HK, Q Type
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Multilayer
- Material - Core:Ceramic
- Inductance:24 nH
- Tolerance:±3%
- Current Rating (Amps):160 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.6Ohm Max
- Q @ Freq:17 @ 500MHz
- Frequency - Self Resonant:2.2GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0201 (0603 Metric)
- Supplier Device Package:0201 (0603 Metric)
- Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max):0.013" (0.33mm)
Related Products

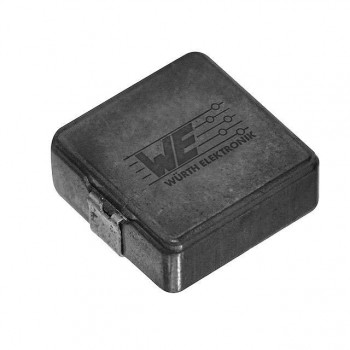

FIXED IND 470NH 15A 3.7 MOHM SMD
