ATS-CPX030030020-171-C3-R0
Advanced Thermal Solutions, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionHEATSINK 30X30X20MM R-TAB CP
- CategoryThermal - Heat Sinks
- Datasheet ATS-CPX030030020-171-C3-R0 Datasheet
-
ECAD Model
- Share
In Stock: 225
Can ship immediately
Pricing:
- 1$4.05
- 10$3.95115
- 25$3.84999
- 50$3.64749
- 100$3.44471
- 250$3.24219
- 500$3.14084
- 1,000$2.83688
Quote It
Technical Details
- Series:pushPIN™
- Package:Tray
- Part Status:Active
- Type:Top Mount
- Package Cooled:Assorted (BGA, LGA, CPU, ASIC...)
- Attachment Method:Push Pin
- Shape:Square, Fins
- Length:1.181" (30.00mm)
- Width:1.181" (30.00mm)
- Diameter:-
- Fin Height:0.790" (20.00mm)
- Power Dissipation @ Temperature Rise:-
- Thermal Resistance @ Forced Air Flow:7.52°C/W @ 100 LFM
- Thermal Resistance @ Natural:-
- Material:Aluminum
- Material Finish:Blue Anodized
Related Products
HEATSINK 45X45X20MM L-TAB CP
ATS-CPX045045020-161-C1-R0 Datasheet- 1: $4.09000
- 10: $3.99111
- 25: $3.88876
HEATSINK 35X35X15MM L-TAB FP
ATS-FPX035035015-56-C3-R0 Datasheet- 1: $4.11000
- 10: $4.01109
- 25: $3.90834
HEATSINK 35X35X15MM R-TAB FP
ATS-FPX035035015-86-C3-R0 Datasheet- 1: $4.11000
- 10: $4.01109
- 25: $3.90834
HEATSINK 35X35X10MM L-TAB CP
ATS-CPX035035010-147-C3-R0 Datasheet- 1: $4.13000
- 10: $4.02172
- 25: $3.91842
HEATSINK 45X45X25MM XCUT CP
ATS-CPX045045025-120-C3-R0 Datasheet- 1: $4.15000
- 10: $4.04074
- 25: $3.93800
HEATSINK 19X12MM SIDE PUSH PIN
- 1: $4.17000
- 10: $4.05785
- 25: $3.94814

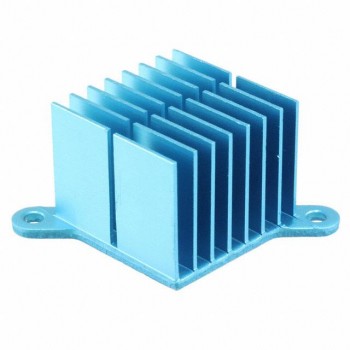

HEATSINK 30X30X25MM L-TAB CP
