ATS-FPX045045020-09-C3-R0
Advanced Thermal Solutions, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionHEATSINK 45X45X20MM XCUT FP
- CategoryThermal - Heat Sinks
- Datasheet ATS-FPX045045020-09-C3-R0 Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$4.36
- 10$4.2498
- 25$4.14153
- 50$3.92323
- 100$3.70542
- 250$3.48742
- 500$3.37841
- 1,000$3.05147
Quote It
Technical Details
- Series:pushPIN™
- Package:Tray
- Part Status:Active
- Type:Top Mount
- Package Cooled:Assorted (BGA, LGA, CPU, ASIC...)
- Attachment Method:Push Pin
- Shape:Square, Fins
- Length:1.772" (45.00mm)
- Width:1.772" (45.00mm)
- Diameter:-
- Fin Height:0.790" (20.00mm)
- Power Dissipation @ Temperature Rise:-
- Thermal Resistance @ Forced Air Flow:10.68°C/W @ 100 LFM
- Thermal Resistance @ Natural:-
- Material:Aluminum
- Material Finish:Blue Anodized
Related Products
HEATSINK 25X25X35MM L-TAB FP
ATS-FPX025025035-48-C3-R0 Datasheet- 1: $4.36000
- 10: $4.24980
- 25: $4.14153
HEATSINK 25X25X35MM R-TAB FP
ATS-FPX025025035-78-C3-R0 Datasheet- 1: $4.36000
- 10: $4.24980
- 25: $4.14153
HEATSINK 19X15MM DIA PUSH PIN
- 1: $4.33000
- 10: $4.21866
- 25: $4.10484
HEATSINK 35X35X20MM L-TAB CP
ATS-CPX035035020-149-C3-R0 Datasheet- 1: $4.42000
- 10: $4.31070
- 25: $4.19910
HEATSINK 45X45X30MM R-TAB CP
ATS-CPX045045030-191-C1-R0 Datasheet- 1: $4.44000
- 10: $4.32972
- 25: $4.21868
HEATSINK 50X50X20MM XCUT CP
ATS-CPX050050020-123-C3-R0 Datasheet- 1: $4.44000
- 10: $4.32972
- 25: $4.21868
HEATSINK 19X18MM FRONT PUSH PIN
- 1: $4.40000
- 10: $4.28185
- 25: $4.16615
HEATSINK 35X35X25MM L-TAB FP
ATS-FPX035035025-58-C3-R0 Datasheet- 1: $4.48000
- 10: $4.36967
- 25: $4.25744

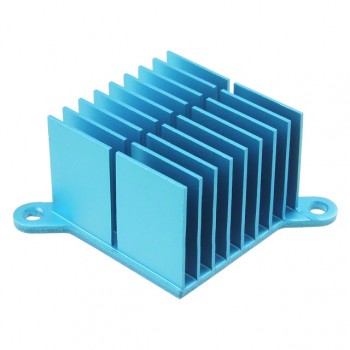

HEATSINK 35X35X25MM R-TAB FP
