ATS-CPX040040010-153-C3-R0
Advanced Thermal Solutions, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionHEATSINK 40X40X10MM L-TAB CP
- CategoryThermal - Heat Sinks
- Datasheet ATS-CPX040040010-153-C3-R0 Datasheet
-
ECAD Model
- Share
In Stock: 222
Can ship immediately
Pricing:
- 1$4.52
- 10$4.4003
- 25$4.28711
- 50$4.06149
- 100$3.83577
- 250$3.61022
- 500$3.49737
- 1,000$3.1589
Quote It
Technical Details
- Series:pushPIN™
- Package:Tray
- Part Status:Active
- Type:Top Mount
- Package Cooled:Assorted (BGA, LGA, CPU, ASIC...)
- Attachment Method:Push Pin
- Shape:Square, Fins
- Length:1.575" (40.00mm)
- Width:1.575" (40.00mm)
- Diameter:-
- Fin Height:0.394" (10.00mm)
- Power Dissipation @ Temperature Rise:-
- Thermal Resistance @ Forced Air Flow:12.06°C/W @ 100 LFM
- Thermal Resistance @ Natural:-
- Material:Aluminum
- Material Finish:Blue Anodized
Related Products
HEATSINK 40X40X10MM R-TAB CP
ATS-CPX040040010-181-C3-R0 Datasheet- 1: $4.52000
- 10: $4.40030
- 25: $4.28711
HEATSINK 60X60X15MM XCUT CP
ATS-CPX060060015-130-C1-R0 Datasheet- 1: $4.54000
- 10: $4.42028
- 25: $4.30667

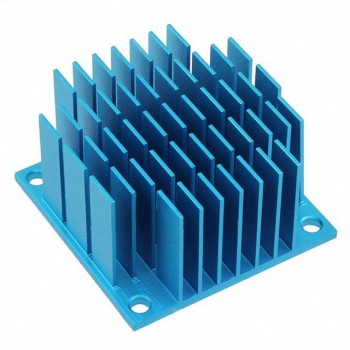

HEATSINK 45X45X25MM L-TAB FP
ATS-FPX045045025-70-C1-R0 Datasheet- 1: $4.56000
- 10: $4.44025
- 25: $4.32587

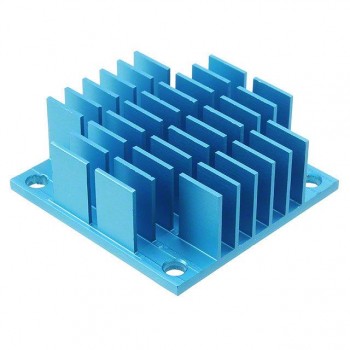

HEATSINK 40X40X15MM L-TAB FP
ATS-FPX040040015-62-C3-R0 Datasheet- 1: $4.56000
- 10: $4.44025
- 25: $4.32587
HEATSINK 40X40X15MM R-TAB FP
ATS-FPX040040015-92-C3-R0 Datasheet- 1: $4.56000
- 10: $4.44025
- 25: $4.32587
HEATSINK 45X45X25MM R-TAB FP
ATS-FPX045045025-100-C1-R0 Datasheet- 1: $4.56000
- 10: $4.44025
- 25: $4.32587

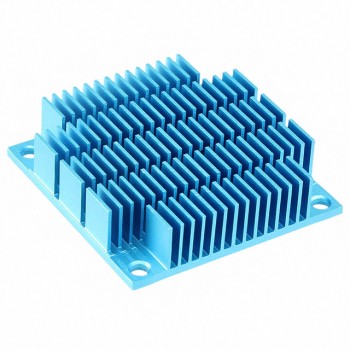

HEATSINK 50X50X12.7MM XCUT FP
ATS-FPX050050013-12-C3-R0 Datasheet- 1: $4.56000
- 10: $4.44025
- 25: $4.32587
HEATSINK 19X23MM FRONT PUSH PIN
- 1: $4.52000
- 10: $4.40368
- 25: $4.28492

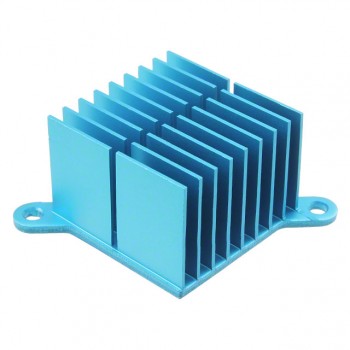

HEATSINK 35X35X25MM L-TAB CP
