UHE1H471MHD3TN
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHE1H471MHD3TN Datasheet
-
ECAD Model
- Share
In Stock: 5,910
Can ship immediately
Pricing:
- 1$1.23
- 250$0.58894
- 500$0.50061
- 750$0.47115
- 1,250$0.44171
- 2,500$0.41226
- 6,250$0.39753
- 12,500$0.37545
- 25,000$0.36809
Quote It
Technical Details
- Series:UHE
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.268 A @ 120 Hz
- Ripple Current @ High Frequency:1.69 A @ 100 kHz
- Impedance:55 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

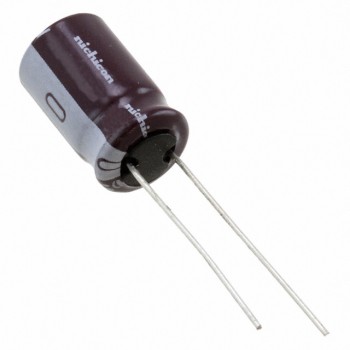

CAP ALUM 100UF 20% 50V TH
