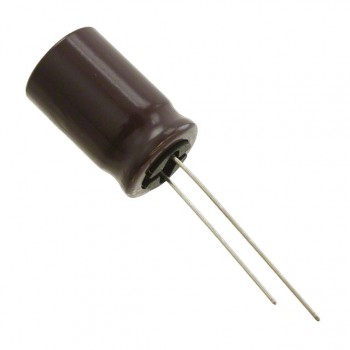

UHE1C152MHD6
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1500UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHE1C152MHD6 Datasheet
-
ECAD Model
- Share
In Stock: 6,884
Can ship immediately
Pricing:
- 1$0.95
- 10$0.70048
- 100$0.48015
- 500$0.3801
- 1,000$0.32008
- 2,500$0.30007
- 5,000$0.28007
Quote It
Technical Details
- Series:UHE
- Package:Bulk
- Part Status:Active
- Capacitance:1500 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.52 A @ 120 Hz
- Ripple Current @ High Frequency:1.9 A @ 100 kHz
- Impedance:35 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.787" (20.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
