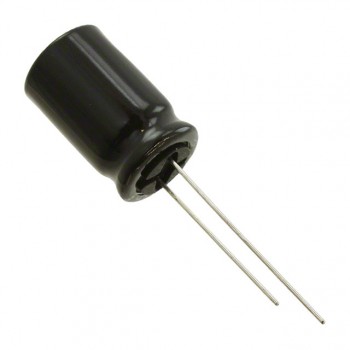

25YXJ2200M12.5X25
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 25YXJ2200M12.5X25 Datasheet
-
ECAD Model
- Share
In Stock: 1,939
Can ship immediately
Pricing:
- 1$1.13
- 10$0.86249
- 100$0.61735
- 500$0.47799
- 1,000$0.41161
- 2,500$0.38506
- 5,000$0.36513
Quote It
Technical Details
- Series:YXJ
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.784 A @ 120 Hz
- Ripple Current @ High Frequency:2.23 A @ 100 kHz
- Impedance:32 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
