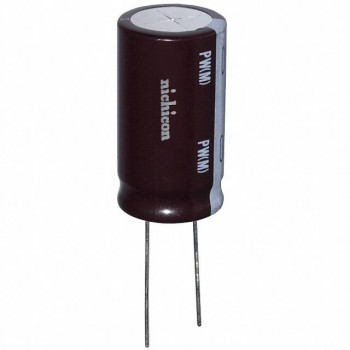

UVY1H472MRD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UVY1H472MRD Datasheet
-
ECAD Model
- Share
In Stock: 374
Can ship immediately
Pricing:
- 1$3.06
- 10$2.46933
- 100$1.92576
- 500$1.43195
- 1,000$1.33319
- 2,500$1.28381
- 5,000$1.25912
Quote It
Technical Details
- Series:UVY
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.1 A @ 120 Hz
- Ripple Current @ High Frequency:2.415 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.787" Dia (20.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
