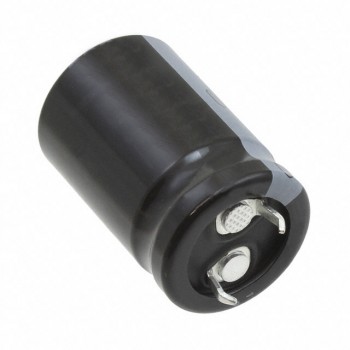

UKA1V472MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UKA1V472MHD Datasheet
-
ECAD Model
- Share
In Stock: 271
Can ship immediately
Pricing:
- 1$3.25
- 10$2.62229
- 100$2.04537
- 500$1.52093
- 1,000$1.41604
- 2,500$1.36359
- 5,000$1.33737
Quote It
Technical Details
- Series:UKA
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:1.91 A @ 120 Hz
- Ripple Current @ High Frequency:2.1965 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
