UPS1C220MDD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

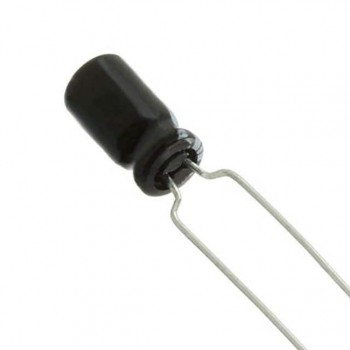

- DescriptionCAP ALUM 22UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPS1C220MDD1TD Datasheet
-
ECAD Model
- Share
In Stock: 4,665
Can ship immediately
Pricing:
- 1$0.28
- 2,000$0.05787
- 4,000$0.05353
- 10,000$0.05064
- 14,000$0.04803
- 50,000$0.0434
- 100,000$0.03834
Quote It
Technical Details
- Series:UPS
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:27.2 mA @ 120 Hz
- Ripple Current @ High Frequency:160 mA @ 100 kHz
- Impedance:1.5 Ohms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
