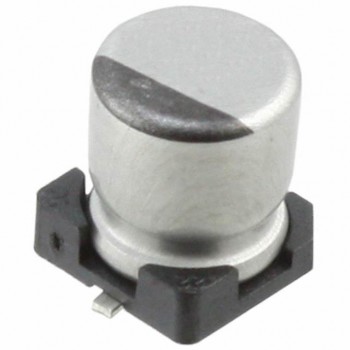

EEE-1VA330P
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 35V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-1VA330P Datasheet
-
ECAD Model
- Share
In Stock: 3,674
Can ship immediately
Pricing:
- 1$0.57
- 1,000$0.14404
- 2,000$0.13646
- 5,000$0.12887
- 10,000$0.12129
- 25,000$0.11371
- 50,000$0.10614
- 100,000$0.09856
Quote It
Technical Details
- Series:S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:130 mA @ 120 Hz
- Ripple Current @ High Frequency:221 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.244" (6.20mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
