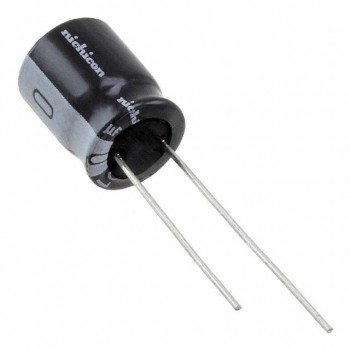

UPS1C471MPD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPS1C471MPD1TD Datasheet
-
ECAD Model
- Share
In Stock: 1,675
Can ship immediately
Pricing:
- 1$0.58
- 500$0.15019
- 1,000$0.12683
- 2,500$0.12015
- 5,000$0.11348
- 12,500$0.10347
- 25,000$0.10013
- 50,000$0.09345
Quote It
Technical Details
- Series:UPS
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:426 mA @ 120 Hz
- Ripple Current @ High Frequency:600 mA @ 100 kHz
- Impedance:190 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.551" (14.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
