UPS1V4R7MDD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

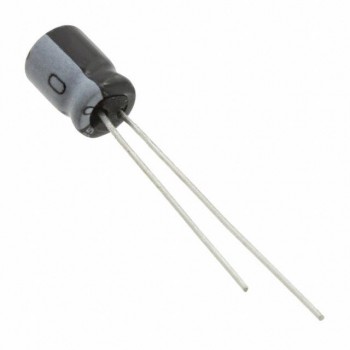

- DescriptionCAP ALUM 4.7UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPS1V4R7MDD Datasheet
-
ECAD Model
- Share
In Stock: 3,531
Can ship immediately
Pricing:
- 1$0.28
- 10$0.19484
- 100$0.11071
- 500$0.07812
- 1,000$0.06835
- 2,500$0.06511
- 5,000$0.06022
Quote It
Technical Details
- Series:UPS
- Package:Bulk
- Part Status:Active
- Capacitance:4.7 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:27.2 mA @ 120 Hz
- Ripple Current @ High Frequency:160 mA @ 100 kHz
- Impedance:1.5 Ohms
- Lead Spacing:0.079" (2.00mm)
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
