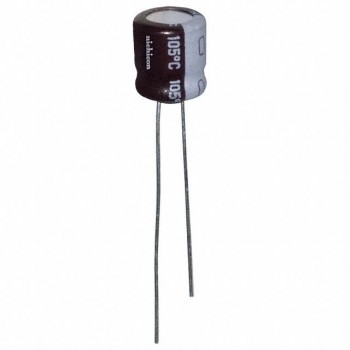

UPS1J220MED
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPS1J220MED Datasheet
-
ECAD Model
- Share
In Stock: 7,884
Can ship immediately
Pricing:
- 1$0.34
- 10$0.23233
- 100$0.13181
- 500$0.09303
- 1,000$0.08139
- 2,500$0.07752
- 5,000$0.07171
Quote It
Technical Details
- Series:UPS
- Package:Bulk
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:30.6 mA @ 120 Hz
- Ripple Current @ High Frequency:180 mA @ 100 kHz
- Impedance:980 mOhms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
