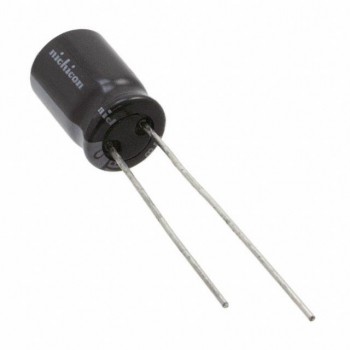

UVP1J3R3MDD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3.3UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UVP1J3R3MDD Datasheet
-
ECAD Model
- Share
In Stock: 1,201
Can ship immediately
Pricing:
- 1$0.39
- 10$0.26497
- 100$0.15015
- 500$0.10599
- 1,000$0.09274
- 2,500$0.08832
- 5,000$0.08171
Quote It
Technical Details
- Series:UVP
- Package:Bulk
- Part Status:Active
- Capacitance:3.3 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Bi-Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:28 mA @ 120 Hz
- Ripple Current @ High Frequency:56 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.079" (2.00mm)
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
