UBT1V331MPD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

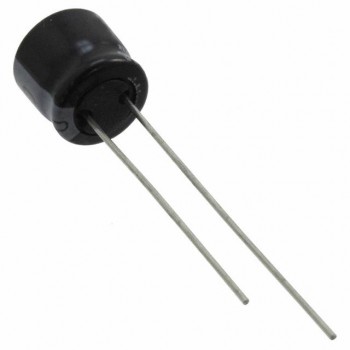

- DescriptionCAP ALUM 330UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UBT1V331MPD1TD Datasheet
-
ECAD Model
- Share
In Stock: 3,945
Can ship immediately
Pricing:
- 1$0.97
- 500$0.37079
- 1,000$0.3193
- 2,500$0.2987
- 5,000$0.28324
- 12,500$0.28015
Quote It
Technical Details
- Series:UBT
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:-
- Applications:Automotive
- Ripple Current @ Low Frequency:475 mA @ 120 Hz
- Ripple Current @ High Frequency:950 mA @ 100 kHz
- Impedance:75 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
