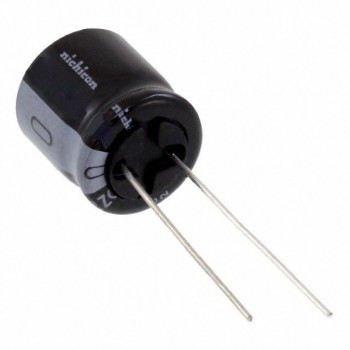

UPM1V331MHD6
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPM1V331MHD6 Datasheet
-
ECAD Model
- Share
In Stock: 2,780
Can ship immediately
Pricing:
- 1$0.93
- 10$0.68429
- 100$0.46925
- 500$0.37152
- 1,000$0.31285
- 2,500$0.29329
- 5,000$0.27374
Quote It
Technical Details
- Series:UPM
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:780 mA @ 120 Hz
- Ripple Current @ High Frequency:1.02 A @ 10 kHz
- Impedance:65 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.669" (17.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
