EEU-EB2D680
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant

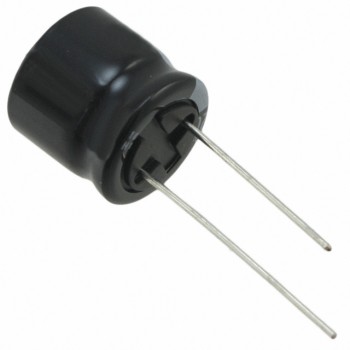

- DescriptionCAP ALUM 68UF 20% 200V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-EB2D680 Datasheet
-
ECAD Model
- Share
In Stock: 1,504
Can ship immediately
Pricing:
- 1$1.16
- 10$0.91766
- 100$0.6882
- 500$0.51995
- 1,000$0.45877
- 2,500$0.42819
- 5,000$0.4129
Quote It
Technical Details
- Series:EB
- Package:Bulk
- Part Status:Active
- Capacitance:68 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:412.5 mA @ 120 Hz
- Ripple Current @ High Frequency:750 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
