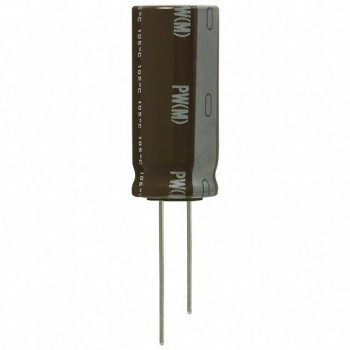

B41858C7228M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41858C7228M000 Datasheet
-
ECAD Model
- Share
In Stock: 1,953
Can ship immediately
Pricing:
- 1$2.19
- 10$1.76851
- 100$1.35054
- 500$1.02901
- 1,000$0.90039
- 2,500$0.87466
Quote It
Technical Details
- Series:B41858
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):27mOhm @ 10kHz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:Automotive
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:2.941 A @ 100 kHz
- Impedance:24 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
