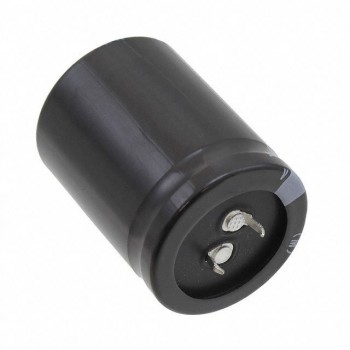

LGU2D182MELC
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1800UF 20% 200V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGU2D182MELC Datasheet
-
ECAD Model
- Share
In Stock: 500
Can ship immediately
Pricing:
- 1$6.41
- 10$5.70058
- 100$4.56046
- 500$3.91919
- 1,000$3.87643
Quote It
Technical Details
- Series:LGU
- Package:Bulk
- Part Status:Active
- Capacitance:1800 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.48 A @ 120 Hz
- Ripple Current @ High Frequency:5.22 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.772" (45.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
