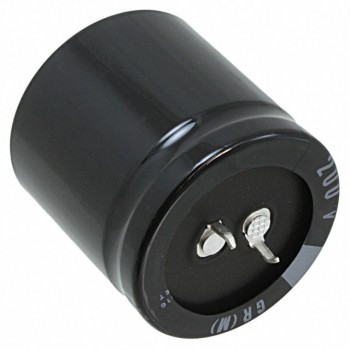

LGR2D681MELB35
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 680UF 20% 200V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGR2D681MELB35 Datasheet
-
ECAD Model
- Share
In Stock: 306
Can ship immediately
Pricing:
- 1$6.55
- 10$5.8908
- 100$4.45117
- 500$3.66565
- 1,000$3.56091
Quote It
Technical Details
- Series:LGR
- Package:Bulk
- Part Status:Active
- Capacitance:680 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.7 A @ 120 Hz
- Ripple Current @ High Frequency:2.55 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
