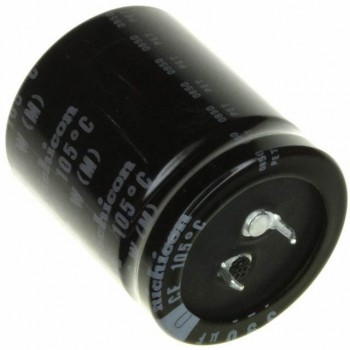

LLG2G471MELC30
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LLG2G471MELC30 Datasheet
-
ECAD Model
- Share
In Stock: 463
Can ship immediately
Pricing:
- 1$7.02
- 10$6.24332
- 100$4.99484
- 500$4.29241
- 1,000$4.24559
Quote It
Technical Details
- Series:LLG
- Package:Bulk
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.13 A @ 120 Hz
- Ripple Current @ High Frequency:3.0459 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
