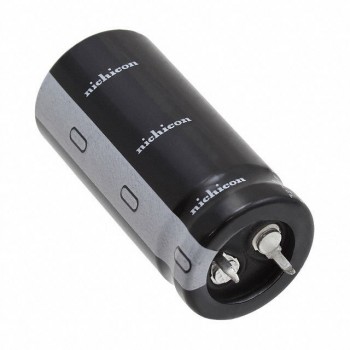

LGU2F121MELZ
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 120UF 20% 315V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGU2F121MELZ Datasheet
-
ECAD Model
- Share
In Stock: 434
Can ship immediately
Pricing:
- 1$3.31
- 10$2.67592
- 100$2.04353
- 500$1.55694
- 1,000$1.36232
- 2,500$1.3234
Quote It
Technical Details
- Series:LGU
- Package:Bulk
- Part Status:Active
- Capacitance:120 µF
- Tolerance:±20%
- Voltage - Rated:315 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:750 mA @ 120 Hz
- Ripple Current @ High Frequency:1.0725 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.866" Dia (22.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
