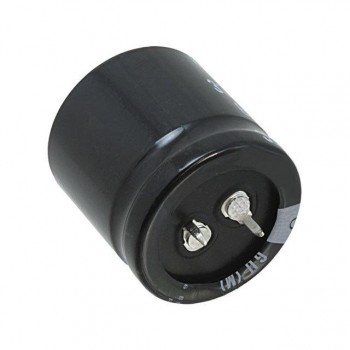

LGU2F331MELB
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 315V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGU2F331MELB Datasheet
-
ECAD Model
- Share
In Stock: 267
Can ship immediately
Pricing:
- 1$4.82
- 10$4.33611
- 100$3.27599
- 500$2.69788
- 1,000$2.62079
Quote It
Technical Details
- Series:LGU
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:315 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.33 A @ 120 Hz
- Ripple Current @ High Frequency:1.5295 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
Related Products

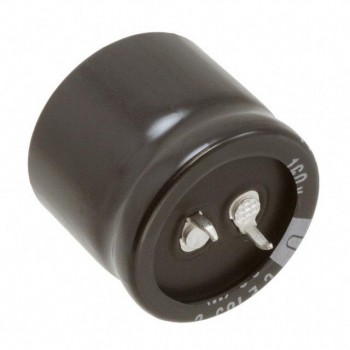

SNAP-IN HIGH CV 105C 1000UF 100V
