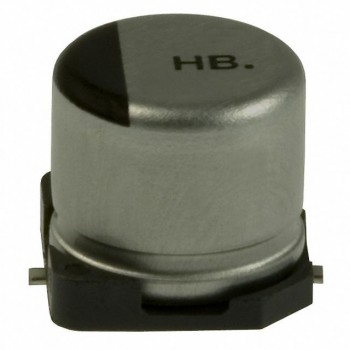

EEV-HB0J220R
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 6.3V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEV-HB0J220R Datasheet
-
ECAD Model
- Share
In Stock: 8,679
Can ship immediately
Pricing:
- 1$0.45
- 2,000$0.06159
- 4,000$0.05774
- 6,000$0.05494
- 10,000$0.05248
Quote It
Technical Details
- Series:HB
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:26 mA @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.228" (5.80mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
