UMA0J100MCD2TP
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

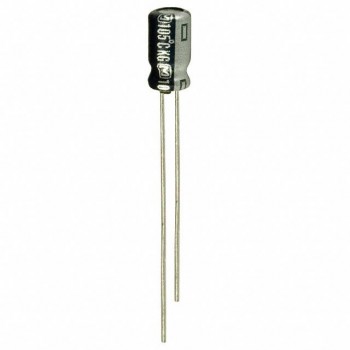

- DescriptionCAP ALUM 10UF 20% 6.3V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UMA0J100MCD2TP Datasheet
-
ECAD Model
- Share
In Stock: 1,179
Can ship immediately
Pricing:
- 1$0.29
- 2,000$0.05286
- 4,000$0.04806
- 10,000$0.04565
- 14,000$0.04325
- 50,000$0.03845
- 100,000$0.03244
Quote It
Technical Details
- Series:UMA
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:10 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:15 mA @ 120 Hz
- Ripple Current @ High Frequency:22.5 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.039" (1.00mm)
- Size / Dimension:0.118" Dia (3.00mm)
- Height - Seated (Max):0.236" (6.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
