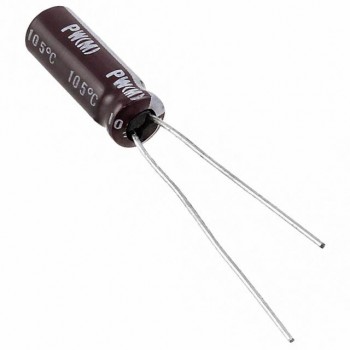

UPW1C820MDD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 82UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPW1C820MDD1TD Datasheet
-
ECAD Model
- Share
In Stock: 1,912
Can ship immediately
Pricing:
- 1$0.35
- 2,000$0.08037
- 4,000$0.07591
- 10,000$0.07144
- 14,000$0.06922
- 50,000$0.06251
- 100,000$0.06073
Quote It
Technical Details
- Series:UPW
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Last Time Buy
- Capacitance:82 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:152.75 mA @ 120 Hz
- Ripple Current @ High Frequency:235 mA @ 100 kHz
- Impedance:500 mOhms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

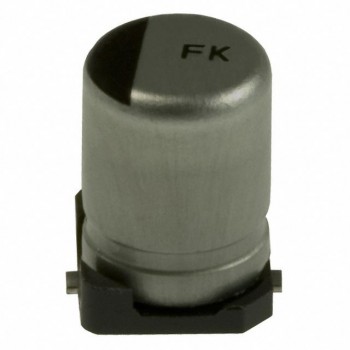

CAP ALUM 10UF 20% 16V SMD
