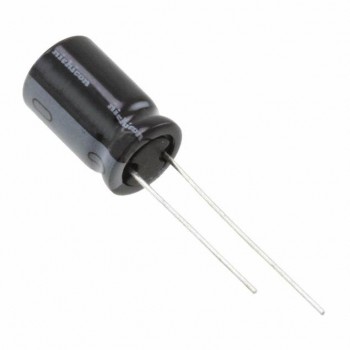

UHE1A222MHD6TO
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 10V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHE1A222MHD6TO Datasheet
-
ECAD Model
- Share
In Stock: 1,438
Can ship immediately
Pricing:
- 1$0.95
- 500$0.36455
- 1,000$0.31392
- 2,500$0.29366
- 5,000$0.27848
- 12,500$0.27544
Quote It
Technical Details
- Series:UHE
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:8000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.52 A @ 120 Hz
- Ripple Current @ High Frequency:1.9 A @ 100 kHz
- Impedance:35 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
