EEU-FS1V152B
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1500UF 20% 35V T/H
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-FS1V152B Datasheet
-
ECAD Model
- Share
In Stock: 1,284
Can ship immediately
Pricing:
- 1$1.34
- 500$0.54672
- 1,000$0.4824
- 2,500$0.45024
- 5,000$0.43416
- 12,500$0.41004
- 25,000$0.402
Quote It
Technical Details
- Series:FS
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:1500 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.552 A @ 120 Hz
- Ripple Current @ High Frequency:3.19 A @ 100 kHz
- Impedance:15 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

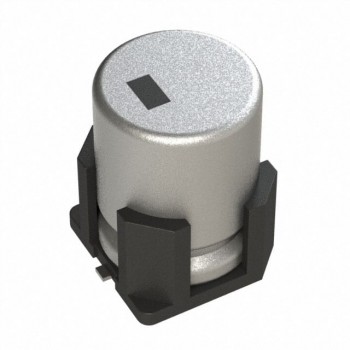

CAP ALUM 47UF 20% 35V SMD
- 1: $1.38000

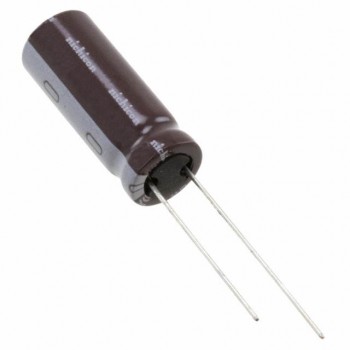

CAP ALUM 390UF 20% 80V THRU HOLE
