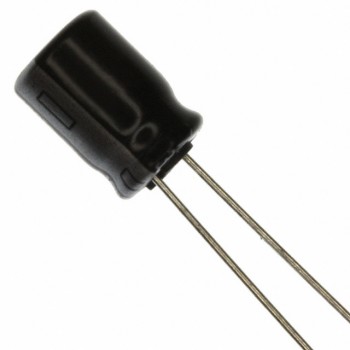

UVP1C101MPD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UVP1C101MPD Datasheet
-
ECAD Model
- Share
In Stock: 441
Can ship immediately
Pricing:
- 1$0.53
- 10$0.3664
- 100$0.21972
- 500$0.16483
- 1,000$0.13918
- 2,500$0.13186
- 5,000$0.12454
Quote It
Technical Details
- Series:UVP
- Package:Bulk
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Bi-Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:160 mA @ 120 Hz
- Ripple Current @ High Frequency:240 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.138" (3.50mm)
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.453" (11.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
