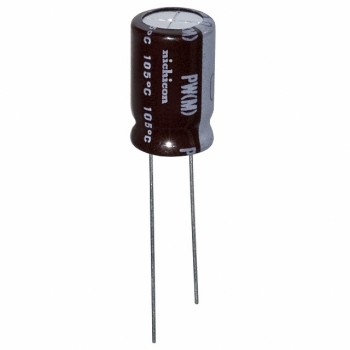

UPX1V220MPD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPX1V220MPD Datasheet
-
ECAD Model
- Share
In Stock: 964
Can ship immediately
Pricing:
- 1$0.61
- 10$0.43161
- 100$0.28405
- 500$0.2104
- 1,000$0.17884
- 2,500$0.16832
- 5,000$0.15779
Quote It
Technical Details
- Series:UPX
- Package:Bulk
- Part Status:Not For New Designs
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:20000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:252 mA @ 120 Hz
- Ripple Current @ High Frequency:336 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.551" (14.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
