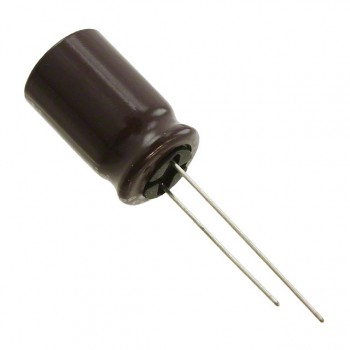

UPS1C102MPD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPS1C102MPD Datasheet
-
ECAD Model
- Share
In Stock: 846
Can ship immediately
Pricing:
- 1$0.75
- 10$0.53077
- 100$0.34927
- 500$0.25869
- 1,000$0.21989
- 2,500$0.20696
- 5,000$0.19402
Quote It
Technical Details
- Series:UPS
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:870 mA @ 120 Hz
- Ripple Current @ High Frequency:1 A @ 100 kHz
- Impedance:110 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
