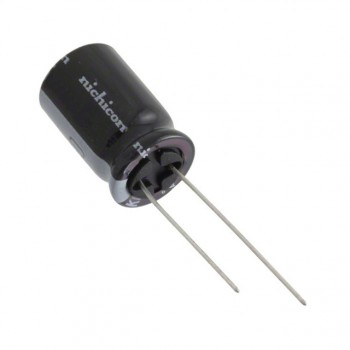

UFG1J331MHM
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UFG1J331MHM Datasheet
-
ECAD Model
- Share
In Stock: 249
Can ship immediately
Pricing:
- 1$1.21
- 10$0.95763
- 100$0.71794
- 500$0.54248
- 1,000$0.47864
- 2,500$0.44673
- 5,000$0.43396
Quote It
Technical Details
- Series:UFG
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:541 mA @ 120 Hz
- Ripple Current @ High Frequency:811.5 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
