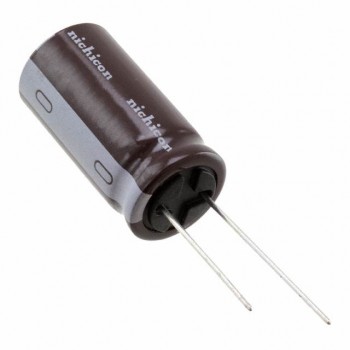

UHW1C472MHD6
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHW1C472MHD6 Datasheet
-
ECAD Model
- Share
In Stock: 243
Can ship immediately
Pricing:
- 1$2.56
- 10$2.07337
- 100$1.58328
- 500$1.20629
- 1,000$1.0555
- 2,500$1.0178
- 5,000$0.98011
Quote It
Technical Details
- Series:UHW
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.048 A @ 120 Hz
- Ripple Current @ High Frequency:3.81 A @ 100 kHz
- Impedance:13 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
