LGY1K102MELZ25
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

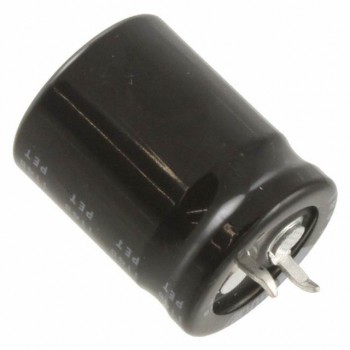

- DescriptionCAP ALUM 1000UF 20% 80V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGY1K102MELZ25 Datasheet
-
ECAD Model
- Share
In Stock: 1,081
Can ship immediately
Pricing:
- 1$2.94
- 10$2.3751
- 100$1.81388
- 500$1.38197
- 1,000$1.20922
- 2,500$1.17468
Quote It
Technical Details
- Series:LGY
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:80 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.3 A @ 120 Hz
- Ripple Current @ High Frequency:1.495 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.866" Dia (22.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
