UKW1J222MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UKW1J222MHD Datasheet
-
ECAD Model
- Share
In Stock: 275
Can ship immediately
Pricing:
- 1$3.16
- 10$2.55455
- 100$1.95099
- 500$1.48647
- 1,000$1.30065
- 2,500$1.25421
- 5,000$1.20775
Quote It
Technical Details
- Series:UKW
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:2.2 A @ 120 Hz
- Ripple Current @ High Frequency:2.53 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.398" (35.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

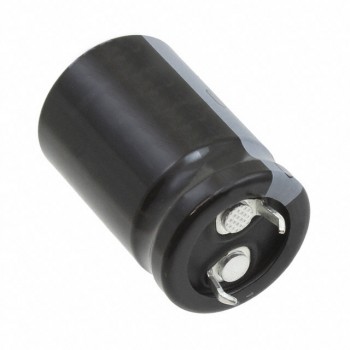

CAP ALUM 2200UF 20% 35V SNAP
