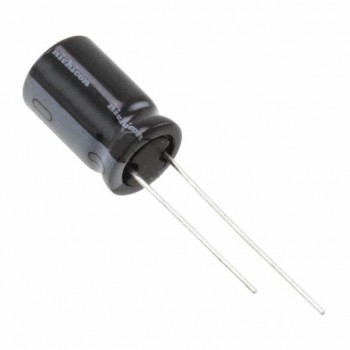

ULD2W6R8MPD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 6.8UF 20% 450V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet ULD2W6R8MPD Datasheet
-
ECAD Model
- Share
In Stock: 720
Can ship immediately
Pricing:
- 1$1.01
- 10$0.76668
- 100$0.54862
- 500$0.42475
- 1,000$0.36576
- 2,500$0.34216
- 5,000$0.32446
Quote It
Technical Details
- Series:ULD
- Package:Bulk
- Part Status:Active
- Capacitance:6.8 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:20000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:62 mA @ 120 Hz
- Ripple Current @ High Frequency:117.8 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.709" (18.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
