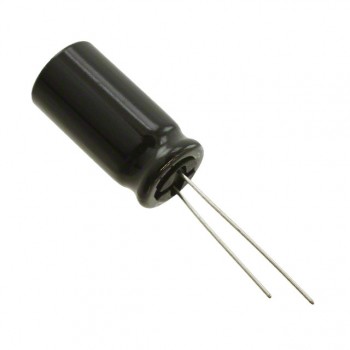

UHW1H391MPD6
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 390UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHW1H391MPD6 Datasheet
-
ECAD Model
- Share
In Stock: 791
Can ship immediately
Pricing:
- 1$1.1
- 10$0.8393
- 100$0.60071
- 500$0.4651
- 1,000$0.40051
- 2,500$0.37466
- 5,000$0.35529
Quote It
Technical Details
- Series:UHW
- Package:Bulk
- Part Status:Active
- Capacitance:390 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.03 A @ 120 Hz
- Ripple Current @ High Frequency:2.06 A @ 100 kHz
- Impedance:30 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
