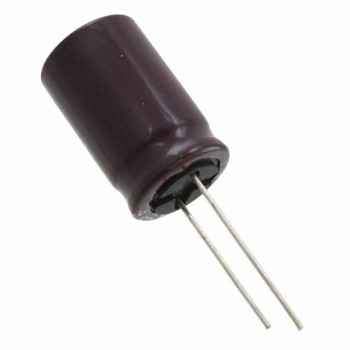

UPT2P101MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 220V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPT2P101MHD Datasheet
-
ECAD Model
- Share
In Stock: 477
Can ship immediately
Pricing:
- 1$1.75
- 10$1.38503
- 100$1.03883
- 500$0.78485
- 1,000$0.69252
- 2,500$0.64634
- 5,000$0.62789
Quote It
Technical Details
- Series:UPT
- Package:Bulk
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:220 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:430 mA @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.299" (33.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
